Access Control

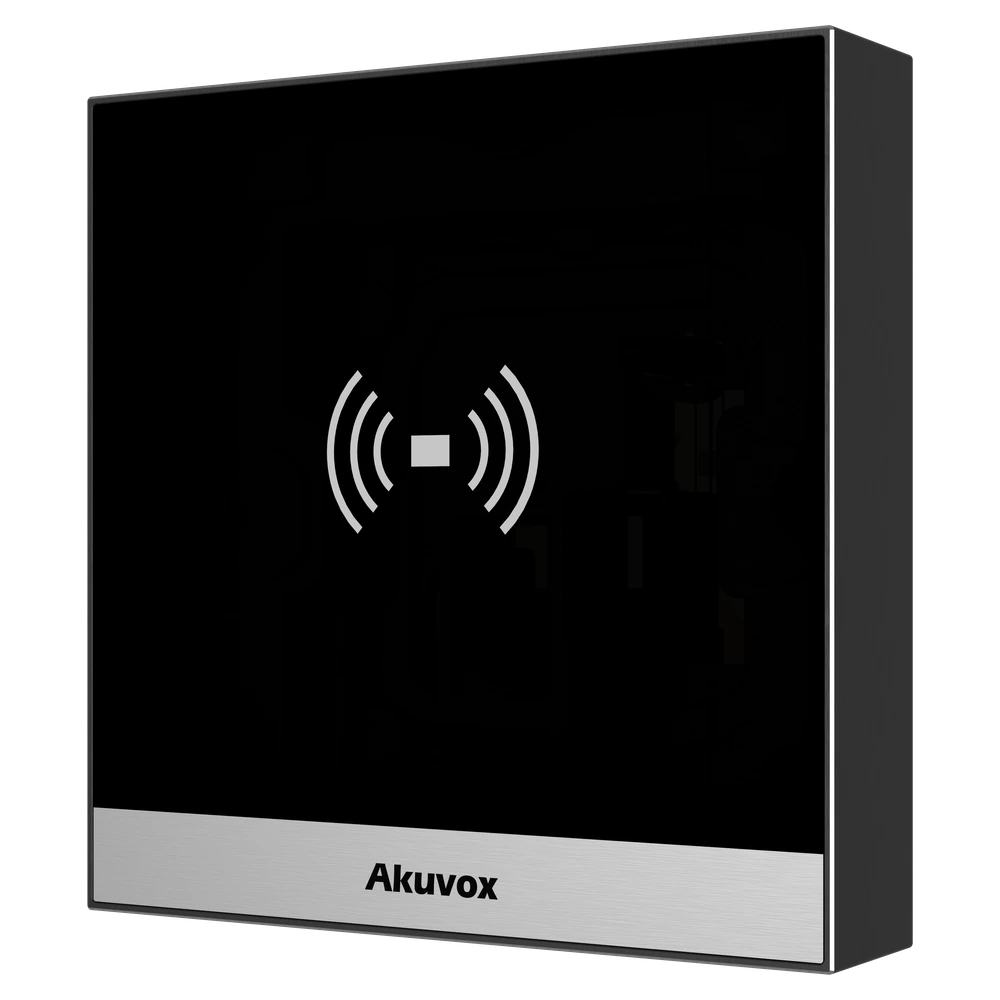

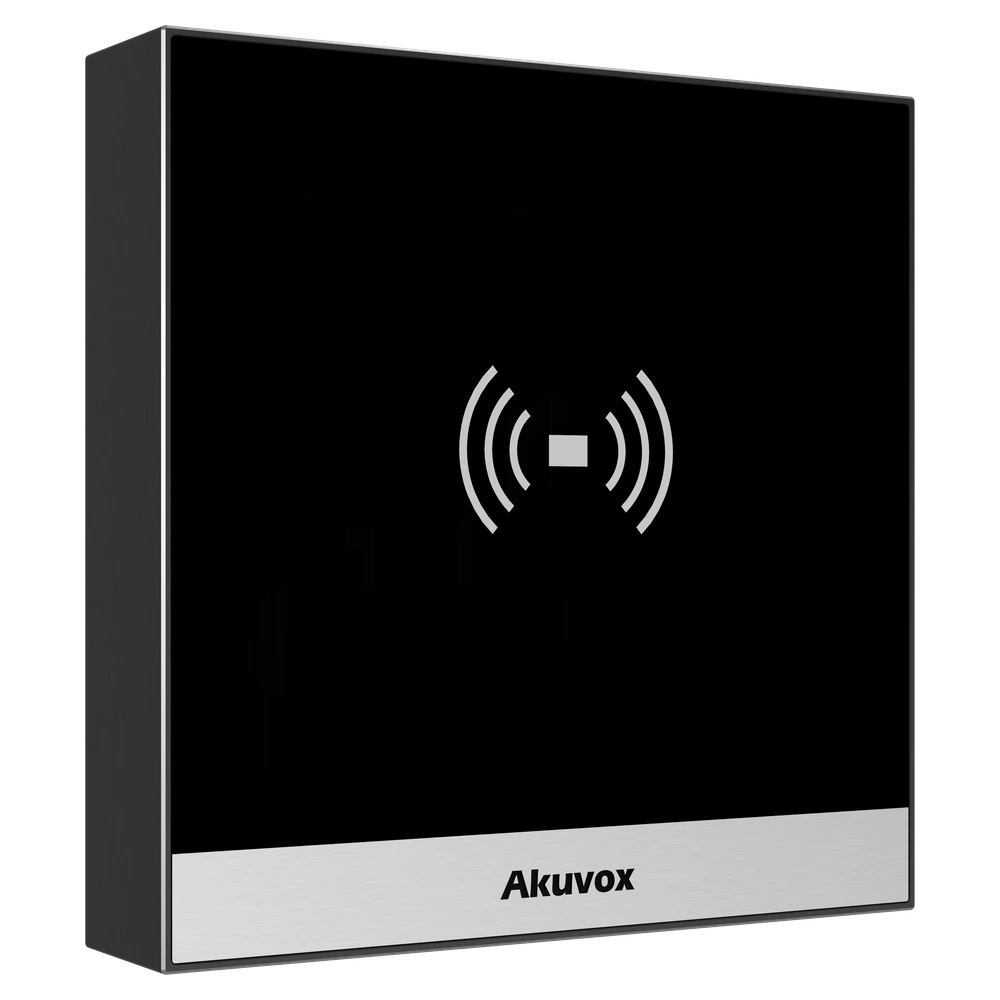

Akuvox A01

RFID & NFC Access Control Terminal

The Akuvox A01 (A01S) is a compact access control terminal with a multi-frequency 125 kHz / 13.56 MHz RFID reader and NFC mobile access for Android phones. With an IP65 / IK07 toughened-glass housing, PoE power and capacity for 20,000 users, it is managed through Akuvox Cloud and ACMS.

RFID Cards

125 kHz & 13.56 MHz

NFC

Android mobile access

IP65 · IK07

Outdoor-ready

PoE

802.3af or 12V DC

Request a Quote

Technical Features

Built for Secure, Simple Access

The Akuvox A01 delivers reliable card-based entry in a compact, weather-resistant design.

Multi-Frequency RFID

Reads both 125 kHz and 13.56 MHz cards, so existing card estates can be reused

NFC Mobile Access

Open doors with an NFC-enabled Android smartphone

IP65 & IK07 Rated

Toughened glass front and aluminium alloy frame with tamper alarm for indoor or outdoor use

Wiegand & Door I/O

1 Wiegand port (input/output), 1 relay output and 2 inputs; switchable to reader mode

PoE or 12V DC

802.3af Power over Ethernet on a single cable, or a 12V DC supply

20,000 Users

Stores 20,000 users, 20,000 cards and 100,000 access log entries

Schedules & Attendance

Access schedules, access levels, log export, shift scheduling and attendance management

Akuvox Cloud & ACMS

Remote management via Akuvox Cloud, with access authority handled by Akuvox ACMS for multi-site systems

Frequently Asked Questions

Akuvox A01 — Common Questions

Everything you need to know about the Akuvox A01 before you buy.

What is the Akuvox A01?

The Akuvox A01 (A01S) is an RFID access control terminal that reads 125 kHz and 13.56 MHz cards and supports NFC mobile access on Android phones. It has an IP65 / IK07 housing, PoE power and stores up to 20,000 users.

Does the Akuvox A01 support facial recognition?

No. The A01 has no camera and does not support facial recognition. It is a card reader that uses RFID cards and Android NFC as credentials.

What credentials does the Akuvox A01 support?

The A01 supports 125 kHz and 13.56 MHz RFID cards and NFC on Android smartphones. It has no keypad for PIN entry.

Can the Akuvox A01 be installed outdoors?

Yes. It is IP65 and IK07 rated, operates from -20°C to +55°C and can be flush-mounted or wall-mounted.

How is the Akuvox A01 managed?

Through its web management portal, Akuvox Cloud and the Akuvox ACMS access control management system, with auto-provisioning, configuration backup and firmware upgrades.

Where can I find the A01 datasheet?

Use the Download Datasheet button on this page — it lists every datasheet for the A01, and each opens as a PDF in a new tab.

Where can I buy the Akuvox A01 in India?

The Akuvox A01 is available in India through Cohesive Technologies, the authorized Akuvox distributor for India, Sri Lanka, Nepal and the Maldives. Email sales@cohesiveglobal.com or call +91 120 4830000.
