Keypad, RFID & NFC Access Control Terminal

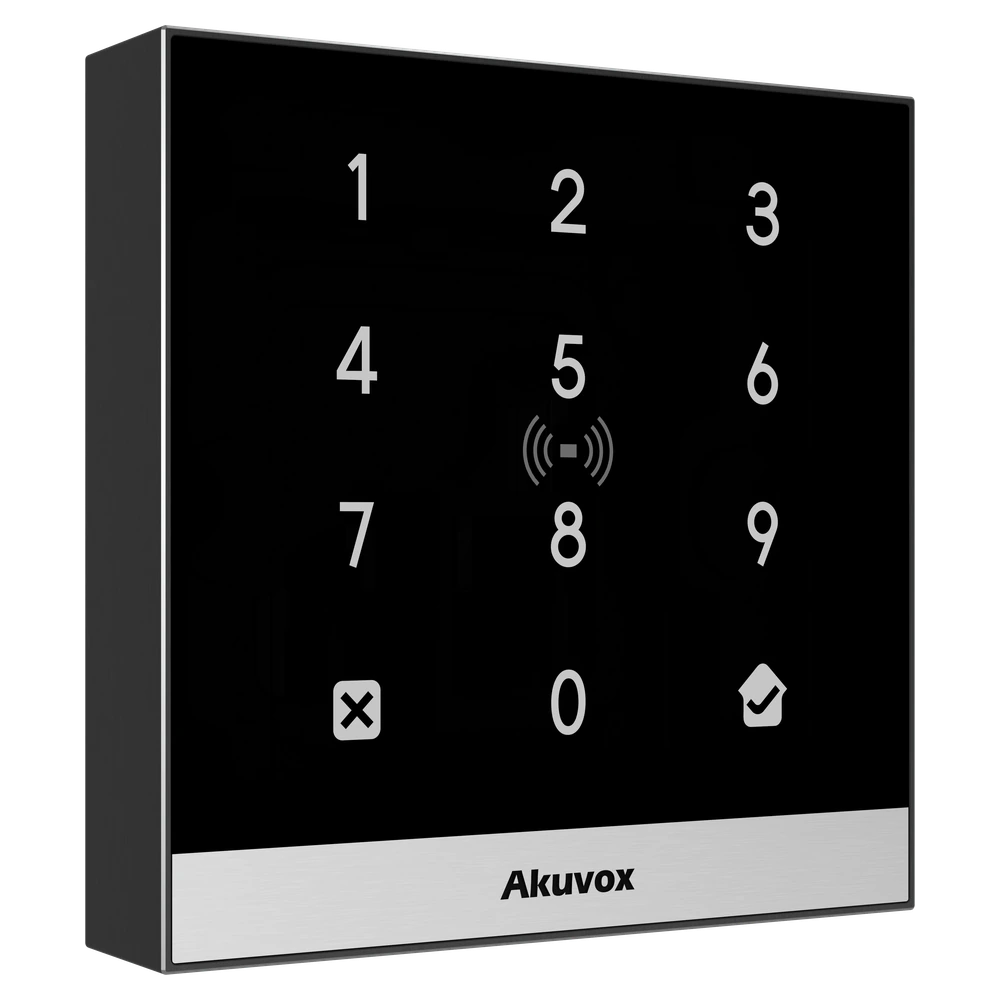

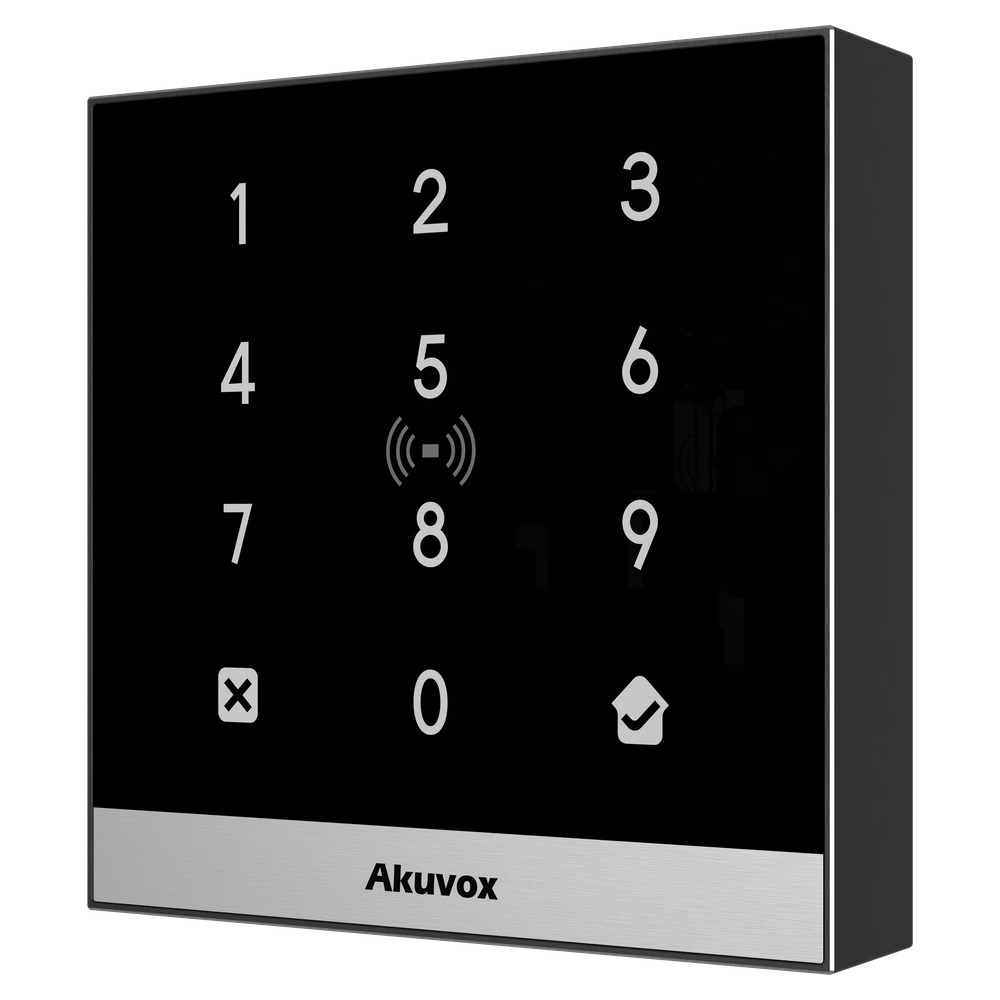

The Akuvox A02 (A02S) is a compact access control terminal combining a touch keypad for PIN entry, a 125 kHz / 13.56 MHz RFID reader and NFC mobile access for Android phones. Its IP65 / IK07 aluminium housing, PoE power and 20,000-user capacity suit indoor and outdoor doors, managed via Akuvox Cloud and ACMS.
Touch keypad entry
125 kHz & 13.56 MHz
Android mobile access
Outdoor-ready
The Akuvox A02 adds PIN entry to card-based access in a compact, weather-resistant design.
Backlit touch keypad for PIN-code entry, with up to 20,000 PINs
Reads both 125 kHz and 13.56 MHz cards, so existing card estates can be reused
Open doors with an NFC-enabled Android smartphone
Aluminium alloy panel and frame with tamper alarm for indoor or outdoor use
1 Wiegand port (input/output), 1 relay output and 2 inputs; switchable to reader mode
802.3af Power over Ethernet on a single cable, or a 12V DC supply
Access schedules, access levels, log export, shift scheduling and attendance management
Remote management via Akuvox Cloud, with access authority handled by Akuvox ACMS for multi-site systems
