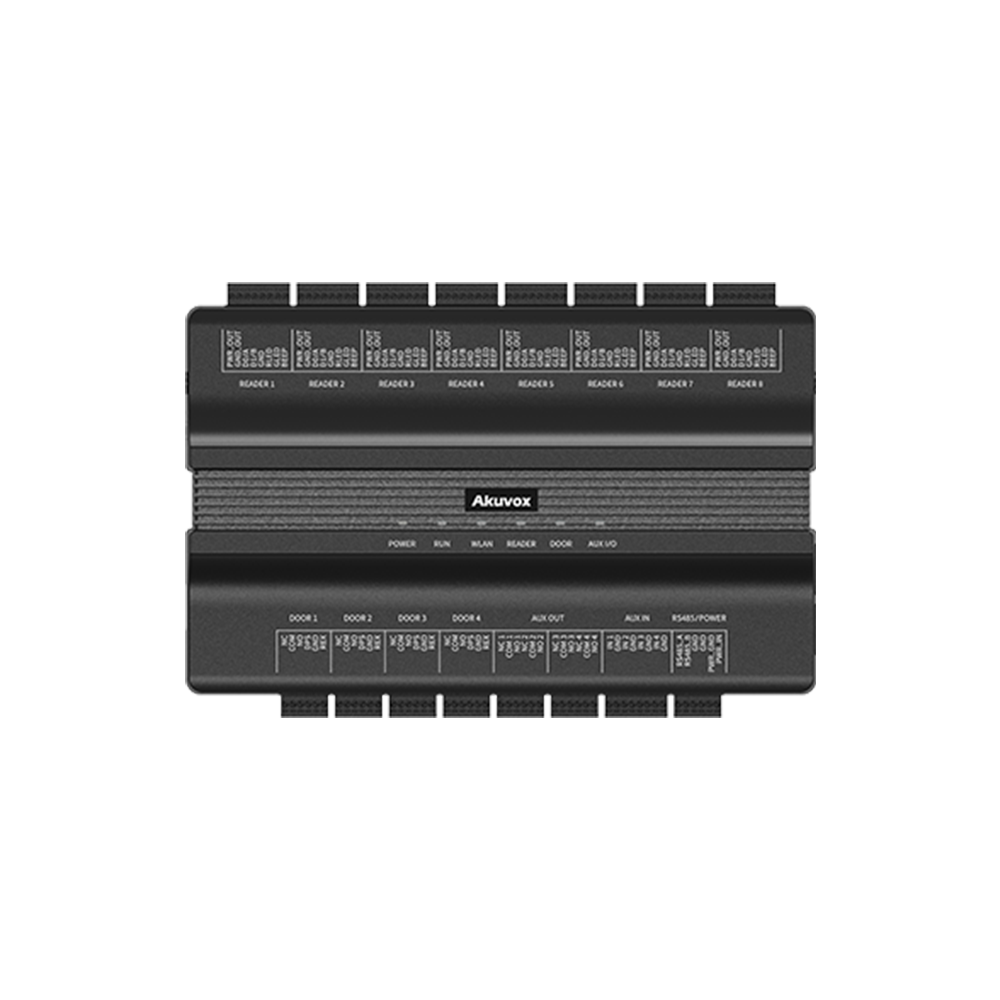

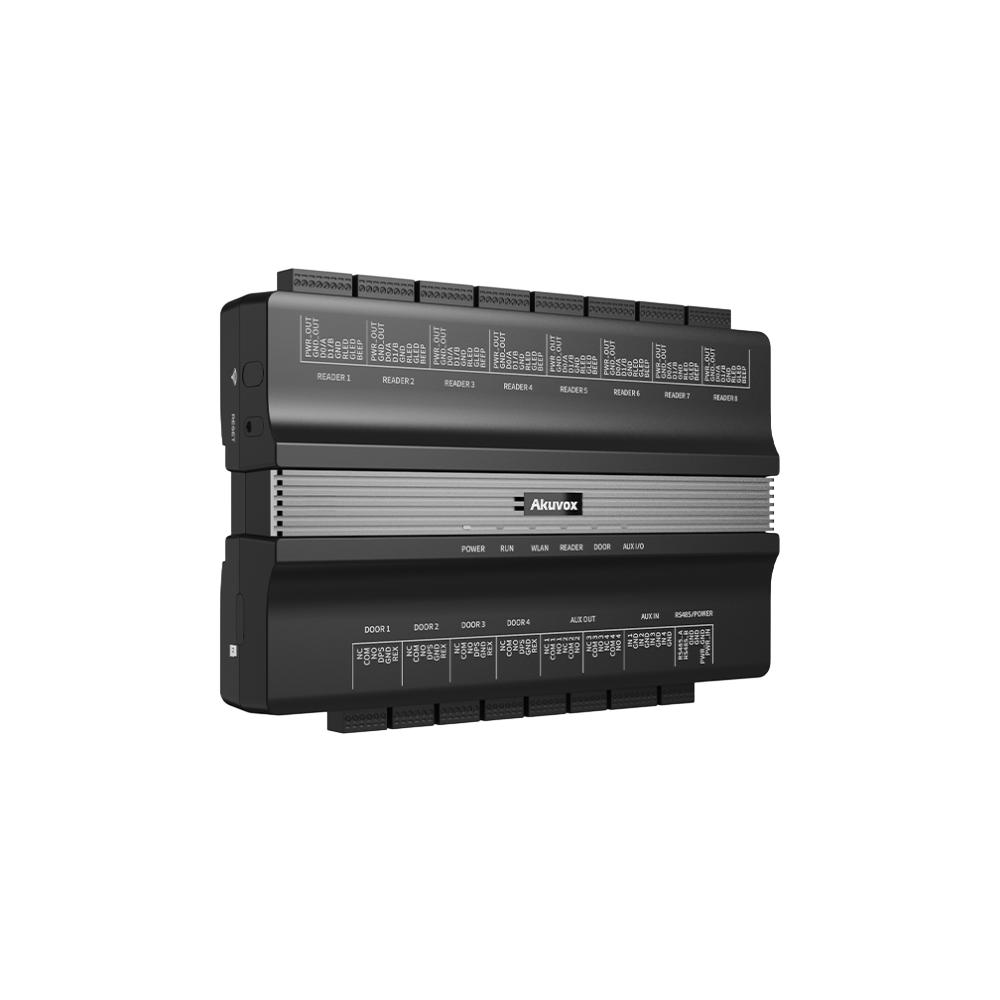

4-Door Network Access Controller
The Akuvox A095 (A095S) is a 4-door network access controller that connects Wiegand 26/34/58 and RS485 / OSDP readers. It offers 8 reader ports, 8 relays, 12 inputs, anti-passback and interlock, with capacity for 100,000 users and 500,000 cards, and connects over dual Ethernet, Wi-Fi or optional LTE, managed via Akuvox Cloud and ACMS.
8 reader ports
RS485 / OSDP v2
Dual-band Wi-Fi, optional LTE
802.3at or 12V DC
The Akuvox A095 centralises control of up to four doors with flexible reader support and resilient connectivity.
8 Wiegand / RS485 reader ports, 8 relays, 12 inputs and 8 power outputs
Works with Wiegand 26/34/58 and RS485 readers, including OSDP and OSDP v2
Anti-passback, multi-door interlock and first-person-in rules
100,000 users, 500,000 cards, 100,000 PINs and 200,000 access logs, plus a TF card slot
2 × 10/100 Mbps Ethernet, dual-band Wi-Fi 802.11ax and optional LTE with SIM slot
IEEE 802.3at Power over Ethernet, or a 12V DC / 5A supply
Tamper-proof enclosure for wall or DIN-rail installation
Remote management via Akuvox Cloud, with access authority handled by Akuvox ACMS for multi-site systems
