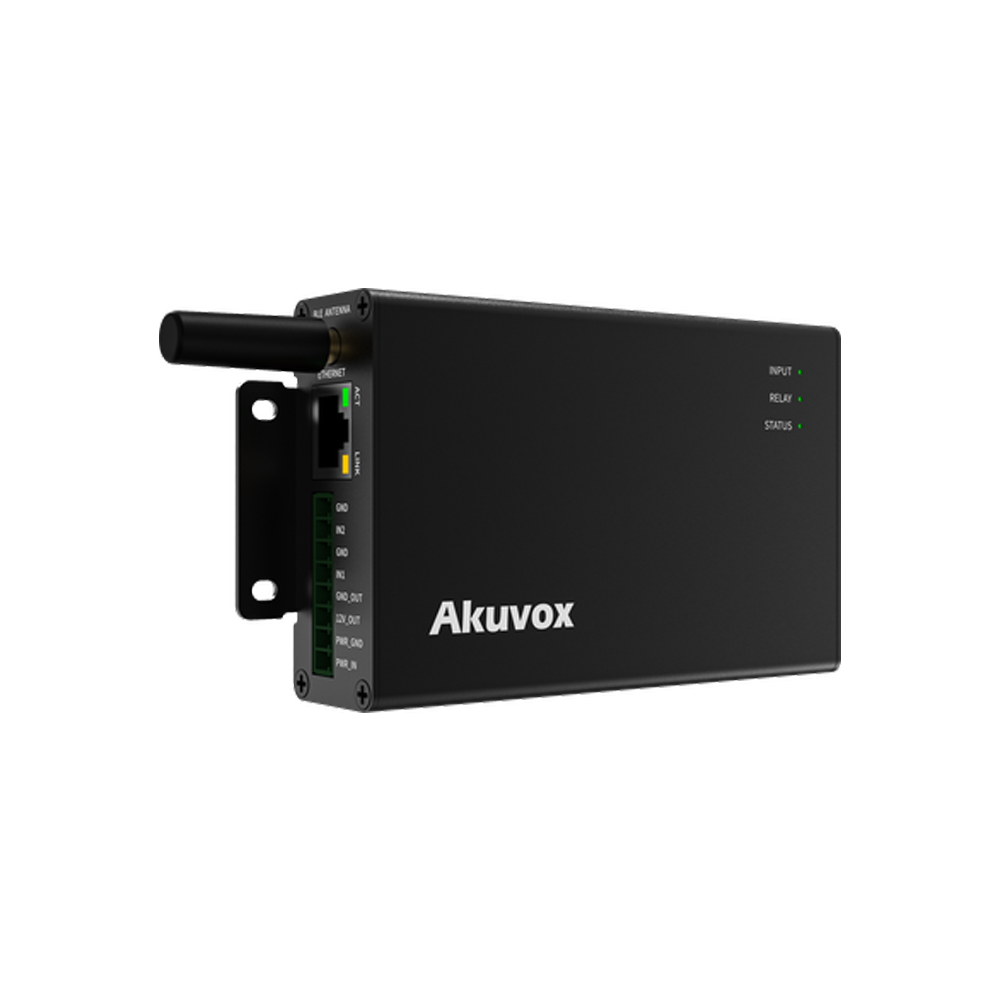

Akuvox WR01

Network-Controlled Web Relay Controller

The Akuvox WR01 is a compact edge relay controller that lets you operate doors, gates, barriers and other equipment remotely — from any web browser, an open HTTP API or the SmartPlus app over BLE. It runs on PoE or a wide 12–24V AC/DC input, powers an external device directly, and the WR01-L variant adds 4G LTE with Caller-ID activation for sites without cabling.

2 Relays · 2 Inputs

Door, gate & barrier control

HTTP API & BLE

SmartPlus app access

PoE or 12–24V

AC or DC input

4G LTE Option

WR01-L with Caller-ID

Download Datasheet
Akuvox WR01 Datasheet
Request a Quote
20K
Users
100K
Access Logs
2
Relays
PoE
Powered
Akuvox WR01 features
Technical Features

Remote Control at the Edge

The Akuvox WR01 brings browser, API and app-based relay control to any door, gate or device — with no client software to install.

Dual Relays & Inputs

2 relay outputs and 2 inputs for locks, gates, barriers, door sensors and exit buttons

Open HTTP API

Trigger relays from third-party platforms, automation systems and scripts over standard HTTP

BLE Proximity Access

Bluetooth 5.0 lets residents and staff open doors from the Akuvox SmartPlus app

4G LTE & Caller-ID

WR01-L adds a plug-and-play SIM, LTE signal LEDs and call-to-open for remote sites and car parks

PoE & Wide-Voltage Input

802.3af PoE or 12V/24V AC or DC input, with a 12V DC / 0.5A output to power a lock or sensor

Zero-Client Web Management

Built-in web server for setup and control from any standard browser — nothing to install

20,000 Users Stored Locally

Up to 20,000 users and 100,000 access logs on the device, with access schedules and door logs

Cloud, SDMC & ACMS Pro

Manage fleets via Akuvox Cloud, SDMC and ACMS Pro; aluminium housing for wall or DIN-rail mounting

Success Stories

What Our Customers Say

Hear directly from businesses that have transformed their communications with Cohesive Technologies solutions.

Customer testimonial video
Cancer Institute
Customer testimonial video
Cleo Gold
Customer testimonial video
Balaji Amines Ltd
Customer testimonial video
Vitel Global Com
Frequently Asked Questions

Akuvox WR01 — Common Questions

Everything you need to know about the Akuvox WR01 before you buy.

The Akuvox WR01 is a network-controlled edge relay controller. It lets you switch doors, gates, barriers and other equipment remotely from a web browser, an open HTTP API or the SmartPlus app, either standalone or as part of a larger automation system.
The WR01-L adds 4G LTE cellular connectivity with a SIM card slot and three signal indicators, plus Caller-ID activation — authorised callers can trigger the relay with a phone call. The standard WR01 uses wired Ethernet only.
Through the HTTP API, BLE proximity access with the Akuvox SmartPlus app, the built-in web interface, and Caller-ID on the WR01-L. Access schedules restrict when each user can operate the relay.
It accepts 802.3af PoE or a wide-voltage input of 12V DC/1A, 24V DC/500mA, 12V AC/1A or 24V AC/500mA. It also has a 12V DC / 0.5A output to power one external device such as a lock or sensor.
The WR01 stores up to 20,000 users and 100,000 access logs locally, so records stay on the device and can be retrieved privately.
It is wall-mounted or DIN-rail mounted in an aluminium alloy housing. Management is through its built-in web portal with no software to install, Akuvox Cloud, and Akuvox SDMC and ACMS Pro, with auto-provisioning, configuration backup and firmware upgrades.
Use the Download Datasheet button on this page — it lists every datasheet for the WR01, and each opens as a PDF in a new tab.
The Akuvox WR01 is available in India through Cohesive Technologies, the authorized Akuvox distributor for India, Sri Lanka, Nepal and the Maldives. Email sales@cohesiveglobal.com or call +91 120 4830000.
