Modular Digital System for Lift Emergency Communication
2N Lift8 is a highly modular lift emergency communication system. Its two-wire bus means it can be installed in any lift without new cabling. One central unit handles up to 8 independent shafts, each with up to 6 audio units, and you can choose PSTN, GSM, UMTS or VoIP to reach the operator. For firefighter lifts, the Fireman Unit meets EN 81-72.
No new cabling
On one central unit
Swappable modules

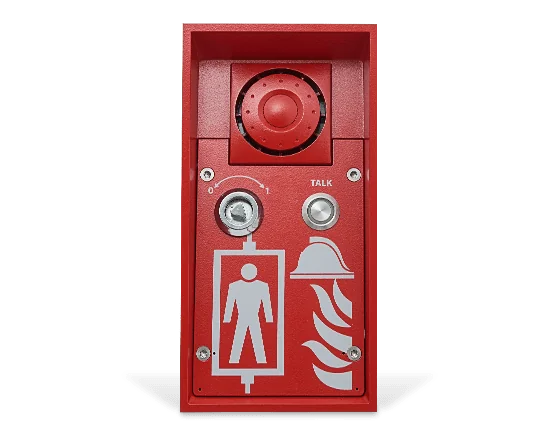

Fireman lift unit
2N Lift8 is built for multi-shaft projects and strict standards, and upgrades to new technology by changing a single module.
Whatever communication technology you use, two wires in the travelling cable connect up to 6 audio units in one shaft and the machine room
One 2N Lift8 Central Unit with one SIM card handles emergency calls from up to 8 independent lift shafts
Add an RS232 or LAN module to the central unit for remote monitoring of the lift controller's status
Meets the requirements of lift standards, with an integrated backup battery and a Fireman Unit for firefighter lifts to EN 81-72
Choose PSTN, GSM, UMTS or VoIP for emergency communication, and switch technology by replacing just the module
Configure locally with the supplied software, or remotely by voice menu, SMS or software application
Sends a visual record of the cabin during an emergency or on operator request, and can record to a microSD card at set intervals
Configure a complete Lift8 system locally (USB) or remotely (IP), view an online diagram of all units and upload your own messages
| System Components | |
| Machine room | 2N Lift8 Central Unit, 2N Lift8 Splitter, 2N Lift8 Audio Unit – Machine Room |
|---|---|
| Shaft | 2N Lift8 Audio Unit Shaft (standard or antivandal), 2N Lift8 Fireman Unit (EN 81-72) |

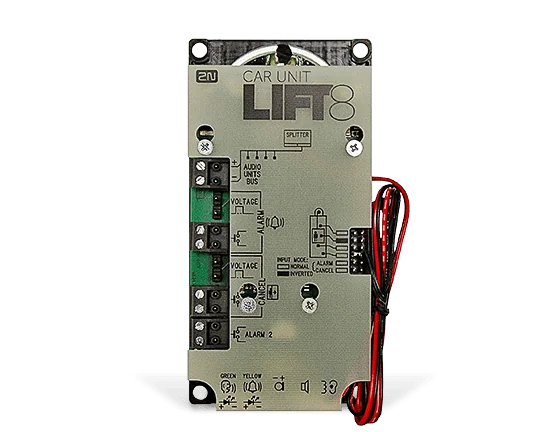

| Cabin | 2N Lift Audio Unit Compact (surface), 2N Lift8 Audio Unit Flush (antivandal), COP version (behind the panel), 2N Lift8 Camera Module |
| Software | 2N Lift8 Service Tool |
| Central Unit | |
| Power supply (max.) | 100–240 V, 50/60 Hz, 0.75 A, 60 W |
| Backup power | Internal lead-acid battery (1.3 Ah / 3 Ah) |
| Service centre interface | PSTN, GSM, UMTS or VoIP module |
| Max. distance between splitters | 100 m (2.5 mm² cable) |
| Indicators | 5 × three-colour LED |
| Operating temperature | 0 to +40 °C |
| Dimensions | 217 × 109 × 83 mm (242 × 136 × 83 mm with frame) |
| Weight | Net max. 2 kg, gross max. 2.5 kg |
| Cellular Module | |
| Bands | GSM 850/900/1800/1900 MHz; UMTS 800/850/900/2100 MHz |
| SIM card | Small plug-in, 3 V |
| Antenna | One external, SMA connector |
| Fireman Unit & Audio Unit Shaft (Antivandal) | |
| Cover | Robust aluminium casting |
| Operating temperature | −25 to +55 °C |
| Relative humidity | 10–95 % (non-condensing) |
| Storage temperature | −40 to +70 °C |
| Configuration & monitoring | Voice menu / USB / remote |
| IP rating | IP65 |
| Dimensions & weight | 300 × 170 × 72 mm; 2.7 kg |
| Splitter | |
| Power supply | 24 V from central unit or local |
| Capacity | 5 audio units and camera module |
| Max. overall length | 600 m |
| Lift block impulse | Relay, NO and NC contacts |
| Dimensions | 142 × 98 × 34 mm |
| Camera Module | |
| Power supply | 12–18 V DC, max. 0.2 A |
| Interface | RS232/RS485 and RJ-45 |
| Memory card | microSD up to 32 GB |
| Dimensions | 142 × 98 × 34 mm |
| I/O Module | |
| Power supply | 24 V from central unit or local |
| Capacity | 4 inputs + 4 outputs |
| Inputs | Galvanically isolated, 12–24 V AC or DC |
| Outputs | Relay, NO contacts, max. 250 V, 5 A |
| Dimensions | 142 × 98 × 34 mm |
Specifications are taken from 2N's product documentation and may change without notice. Refer to the datasheet for the latest details.
