Lift emergency communication from 2N, an Axis company: the SIP-based LiftIP 2.0, the LiftGate IoT gateway, cloud management with Elevator Center, Call Centre for Lifts monitoring software and the modular Lift8 digital system.
A lift emergency communication system connects passengers trapped in a lift cabin to a call centre, reception or control room. Cohesive Technologies, the authorised 2N distributor in India, supplies two families of 2N elevator systems:
IP Solutions (LiftIP 2.0, LiftGate, Elevator Center) — A smart lift is a connected lift. With one IoT gateway and two wires in the travelling cable, you can connect an IP communicator, camera, access reader and advertising panel in the cabin, then manage everything from the cloud.
Digital Solution (Lift8) — A modular system with a wide range of communication interfaces. Connect up to eight shafts to one central unit, with up to six audio units per shaft.
Monitoring for both (Call Centre for Lifts) — Software to receive, archive and report on alarm and control calls from any CPC or P100 communicator, so you can run your own 24/7 lift monitoring centre.
SIP-based lift emergency communicator with PoE, 24/7 monitoring, remote configuration and alarm calls linked to cabin video.

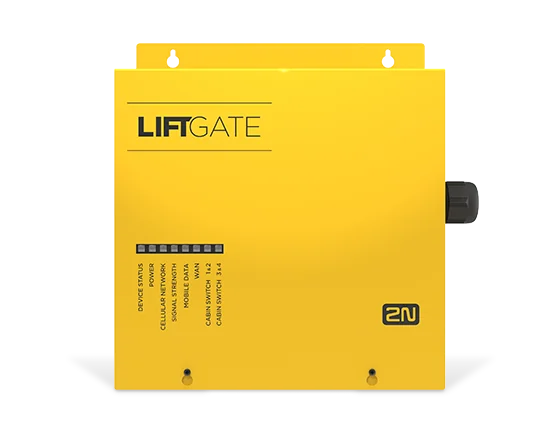

All-in-one lift IoT gateway: LTE router, backup power, 2-wire-to-IP converter and switch, for up to 4 IP devices in the cabin.

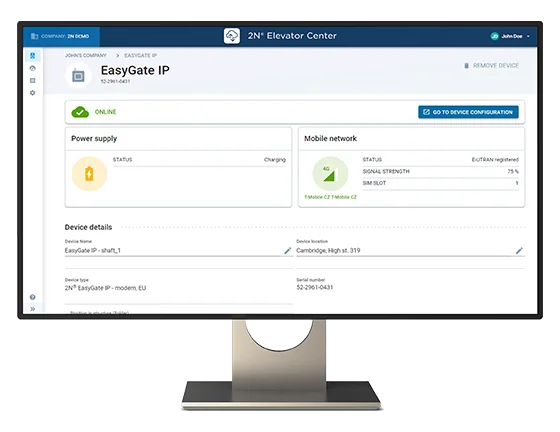

Cloud portal for central management and monitoring of 2N IP lift communicators and gateways, with auto-configuration.

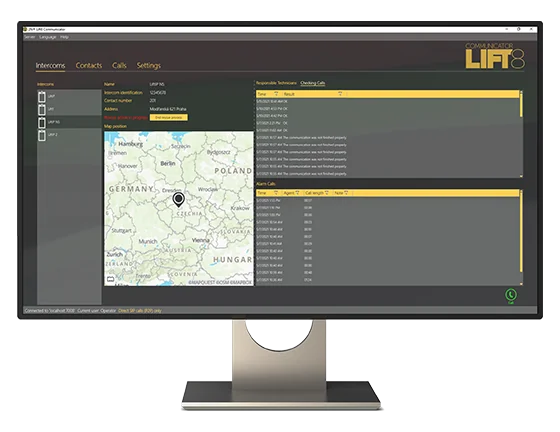

Software for managing lift alarm and control calls from any CPC or P100 communicator, with archiving, maps and cabin images.

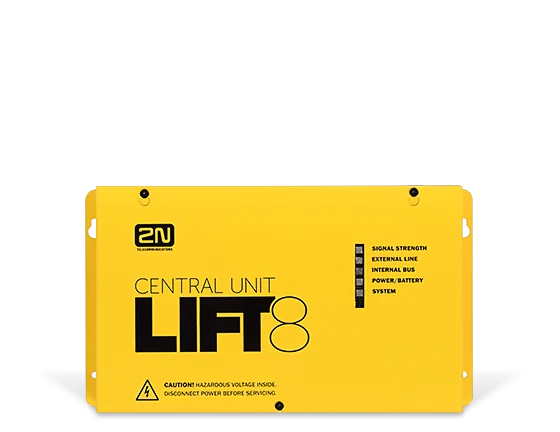

Modular digital system: up to 8 shafts per central unit, 6 audio units per shaft over two wires, PSTN/GSM/UMTS/VoIP modules.
Choose 2N LiftIP 2.0 for lifts with IP infrastructure, or with LiftGate where there is no Ethernet to the cabin. Choose 2N Lift8 for multi-shaft buildings, firefighter lifts, or projects that need PSTN or GSM connectivity.
| Feature | 2N LiftIP 2.0 (IP) | 2N Lift8 (Digital) |
|---|---|---|
| Type | SIP emergency communicator | Modular digital communication system |
| Connection to operator | VoIP / SIP over LAN, or WAN / 4G via LiftGate | PSTN, GSM, UMTS or VoIP module |
| Cabling to cabin | Ethernet, or 2 wires with LiftGate | 2 wires in the travelling cable |
| Scale | One communicator per cabin | Up to 8 shafts, 6 audio units per shaft |
| Power | PoE 802.3af or 10–30 V DC | 100–240 V AC with internal backup battery |
| Management | Cloud, via 2N Elevator Center | 2N Lift8 Service Tool (USB / IP), voice menu or SMS |
| Video | Alarm calls linked to an IP camera | Optional Camera Module |
| Standards | EN 81-28, EN 81-70 | Fireman Unit to EN 81-72 |
| Best for | New and modernised lifts on an IP network | Multi-shaft buildings and firefighter lifts |
A lift emergency communication system lets a passenger trapped in a lift cabin press an alarm button and speak to someone who can help, whether that is building reception, a security control room or a lift company's call centre. It has three parts: an emergency communicator in the cabin, a connection to the operator, and software or a phone that receives the alarm call. Standards such as EN 81-28 set the requirements for these remote alarm systems.
2N's IP Solutions carry alarm calls over VoIP. The 2N LiftIP 2.0 communicator can be monitored 24/7, managed remotely and powered over PoE. Where there is no Ethernet cable to the cabin, 2N LiftGate provides IP connectivity over two wires and adds 4G, backup power and a switch for cameras and readers. 2N Elevator Center manages all these devices from the cloud.
2N Lift8 is a modular system for buildings with several lifts. One central unit serves up to eight shafts over a two-wire bus and reaches the operator through a PSTN, GSM, UMTS or VoIP module, so changing technology later means replacing one module.
Lift companies and facility managers can use 2N Call Centre for Lifts to receive alarm calls, see cabin images and lift locations on a map, archive calls and export reports. It works with any communicator that supports the CPC or P100 protocol.
Looking for accessible door communication as well? See the 2N Induction Loop for visitors with hearing aids, or explore all 2N products.
Products designed to meet lift standards, including EN 81-28, EN 81-70 and EN 81-72 for firefighter lifts.
LiftGate and Lift8 both run over two wires in the travelling cable, so there is no new cabling to the cabin.
Monitor and configure IP lift devices from the cloud with 2N Elevator Center, and avoid unnecessary site visits.
Developed, tested and manufactured in Prague by 2N, part of the Axis Communications group.
Start with the connectivity in your building. If the lift cabin has an Ethernet connection, or you are modernising the lift, the 2N LiftIP 2.0 gives you a SIP communicator that can be monitored and configured remotely. If there is no UTP cable to the cabin, add 2N LiftGate to carry IP over two wires in the travelling cable, with 4G and backup power built in.
For buildings with several lifts, firefighter lifts that must meet EN 81-72, or projects that need PSTN or GSM connectivity, 2N Lift8 lets one central unit serve up to eight shafts. Finally, decide how calls will be handled: use 2N Elevator Center to manage IP devices from the cloud, and 2N Call Centre for Lifts if you want to run your own alarm-call monitoring centre.
Whether you are a lift manufacturer, a lift service company, a builder or a facility manager, 2N has a lift emergency communication solution for residential towers, office buildings, hospitals, shopping centres and public buildings. As an authorised 2N distributor, Cohesive Technologies offers expert consultation, genuine stock, quotation support and delivery across India, Sri Lanka, Nepal and the Maldives, backed by technical support.
