All-in-One IoT Gateway for Multimedia Lift Communication

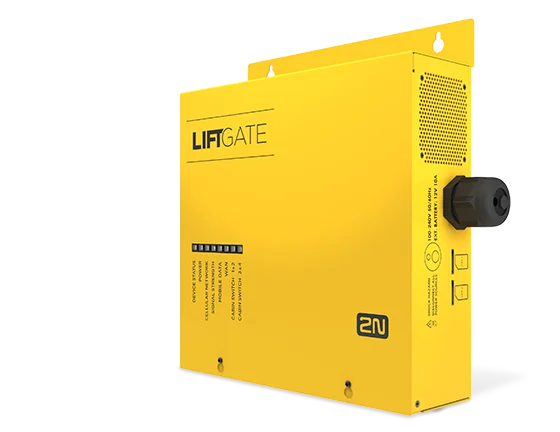

The 2N LiftGate IoT gateway transforms a regular lift into a modern IP solution, even where there is no UTP cable to the cabin. IP connectivity runs over two wires in the travelling cable. LiftGate combines an LTE router, a backup power supply, a 2-wire-to-IP converter and a switch in one unit, so you install one product instead of four.
No new cabling to the cabin
Plus WAN port backup
12 V / 9 Ah battery included
Communicator, camera, reader, display
2N LiftGate brings IP connectivity, mobile data and backup power to the lift in one certified product, saving installation time and cost.

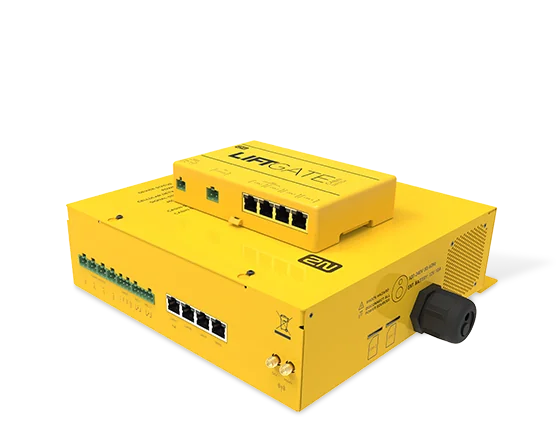

Install LiftGate in the machine room and a LiftGate Cabin Switch on the cabin roof, connected by two wires in the travelling cable
Replaces a separate LTE router, switch, converter and backup power supply with one certified product
Connect an IP communicator, camera, advertising display or access reader to the Cabin Switch, plus a 12 V backup output for emergency lighting
Connect the lift controller and an IP phone in the machine room, meeting requirements for shafts over 30 m and enabling machine-room-to-cabin communication
Built-in UPS keeps emergency communication and emergency lighting running during power cuts
One SIM handles calls and data for the gateway, controller or access control; a WAN port or second SIM provides backup
If the mobile network fails, LiftGate switches a relay and informs the controller, which can set the lift out of service
Manage and monitor the gateway remotely through 2N Elevator Center, and control it or receive notifications by SMS
| LiftGate Main Unit · Mobile Network | |
| GSM bands (EU) | EGSM 900 MHz, GSM 1800 MHz |
|---|---|
| UMTS bands (EU) | 850 / 900 / 2100 MHz |
| LTE bands (EU) | B1, B3, B5, B7, B8, B20 |
| SIM cards | 2 slots, (U)SIM, 1.8 / 3.0 V |
| Antenna | Two inputs (one RX only), 50 Ω, F-SMA connector |
| LiftGate Main Unit · Ethernet & I/O | |
| Ethernet | 4 × RJ-45, 1 Gbps (1 × WAN, 3 × LAN) |
| PoE | 1 × PoE 802.3af Class 2 (max 6.49 W) on LAN3 |
| Protocols | IPv4, IGMP, DNS, DHCP, NAT, HTTP, HTTPS, WS, NTP, OpenVPN, Syslog |
| Inputs | 2 × 0–24 V (low 0–2 V, high 4–24 V) |
| Outputs | 2 × relay (NO, NC, COM), max 30 V / 1 A DC, 125 V / 0.3 A AC |
| Number of lines | 2 |
| LiftGate Main Unit · Power & Physical | |
| Supply | 100–230 V AC, 50/60 Hz |
| Input power | 65 W for 2 × Cabin Switch |
| Backup power | Built-in lead-acid battery, 12 V / 9 Ah (included) |
| Operating temperature | −20 °C to +50 °C |
| Dimensions | 270 × 240 × 80 mm |
| Weight | 4.7 kg with battery, 2.2 kg without |
| IP protection | IP20 |
| LiftGate Cabin Switch | |
| Connection to main unit | 2 wires |
| Ethernet | 4 × RJ-45, 100 Mbps |
| PoE | 2 × PoE 802.3af Class 2 (max 6.49 W) on LAN1 and LAN2 |
| Output | 12 V DC, 100 mA (emergency lighting) |
| Operating temperature | −20 °C to +50 °C |
| Dimensions | 143 × 95 × 32 mm |
| Weight | 0.2 kg |
| IP protection | IP30 |
| Installation | Surface mount on a wall or DIN rail |
| Order Numbers | |
| 5024101E | 2N LiftGate, 2 × Cabin Switch, battery, EU plug |
| 502460E | 2N LiftGate Cabin Switch, 4 × Ethernet, 12 V DC |
| Other regions | AU (5024101AU) and US (5024101US) variants with regional bands |
Specifications are taken from 2N's product documentation and may change without notice. Refer to the datasheet for the latest details.
