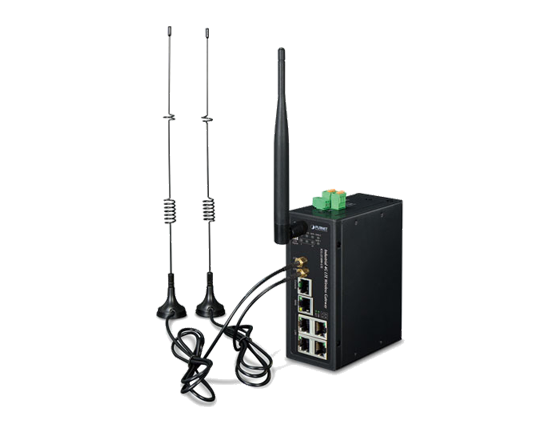

Planet ICG-2510W-LTE Cellular Gateway

Planet ICG-2510W-LTE

Industrial 4G LTE Cellular Wireless Gateway with 5-Port 10/100/1000T

PLANET ICG-2510W-LTE is a reliable, secure and high-bandwidth communications industrial-grade cellular gateway for demanding mobile applications, M2M (machine-to-machine) and IoT deployments. It features 4G LTE (Long Term Evolution), 2.4G/5G Wi-Fi, five Ethernet ports (4 LAN and 1 WAN), serial console port, DI and DO interfaces, and VPN technology bundled in a compact yet rugged metal case. It establishes a fast cellular connection between Ethernet and serial port equipped devices.

    Top Features

  • Dual module SIMs for network load balancing and redundancy
  • Wi-Fi compliant IEEE 802.11b/g/n/ac dual-band for mobile client connectivity
  • 5-port Gigabit Ethernet, built-in redundant VRRP protocol

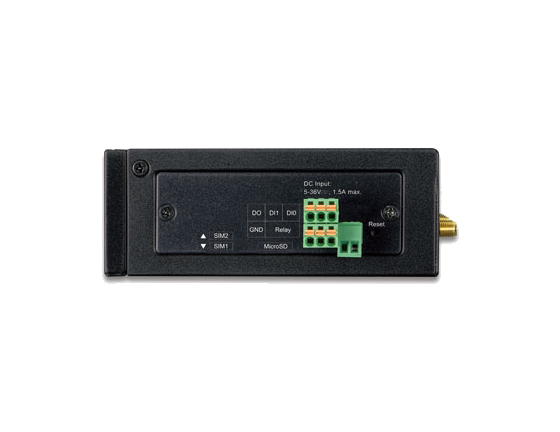

  • 2 DI, 1DO and 1 serial console port (RS232 or RS485) for Modbus applications
  • Multiple VPNs with IPSEC, OpenVPN, PPTP, L2TP, GRE and VPN Failover
  • Full security with VLAN, NAT,DMZ, Static routing, firewall and IP/MAC/port filtering
  • Supports CMS for remote management
  • -35 to 75 degrees C operating temperature and fanless design
    • Apart from these, you can find manifold other smarter features and we at Cohesive Technologies give you the best options.

Features & Benefits

  • Four 10/100/1000BASE-T RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X
  • One 10/100/1000BASE-T RJ45 WAN port, auto-negotiation, auto MDI/MDI-X
  • Two 4G LTE antennas
  • One 2.4G/5G WiFi antenna
  • Two SIM card slots
  • One serial console port (RS232 or RS485)
  • One reset button
  • One MicroSD slot to save files for serial port data
  • Dual module SIMs for network load balancing and redundancy
  • Wi-Fi compliant IEEE 802.11b/g/n/ac dual-band for mobile client connectivity
  • 5-port Gigabit Ethernet, built-in redundant VRRP protocol
  • 2 DI, 1DO and 1 serial console port (RS232 or RS485) for Modbus applications
  • Multiple VPNs with IPSEC, OpenVPN, PPTP, L2TP, GRE and VPN Failover
  • Full security with VLAN, NAT,DMZ, Static routing, firewall and IP/MAC/port filtering
  • Supports CMS for remote management
  • -35 to 75 degrees C operating temperature and fanless design
